GRAAS LawnCare - 7-zone automatic lawn irrigation controller

GRAAS LawnCare - 7-zone automatic lawn irrigation controller

€230,00; €230,00
Unit price: per

• Suitable for most lawn irrigation systems

• Monitor lawn irrigation on your phone

• Data is stored on the server

• 7 different irrigation zones

• Up to 20 different sensors

Delivery

Estimated delivery time: 7-14 business days from the date of order receipt.

GRAAS LawnCare - 7-zone automatic lawn irrigation controller

€230,00

Quantity:

GRAAS LawnCare - 7-zone automatic lawn irrigation controller

€230,00

AUTOMATIC LAWN WATERING SYSTEM

GRAAS LawnCare – the smart irrigation solution for your lawn.

The irrigation controller is managed via a mobile app, which means you can monitor and control watering from anywhere in the world.

Ensure your lawn always looks impeccable. This smart irrigation controller not only automates watering but also helps save time, water, and energy.

Advanced digital sensors allow precise monitoring of soil and air temperature and humidity, as well as water consumption. A rain sensor will stop irrigation as soon as rainfall begins.

The irrigation controller is controlled by a phone app, which means you can monitor and control irrigation from anywhere in the world.

You will ensure that your lawn always looks flawless. It is a smart irrigation controller that not only automates irrigation, but also helps to save time, water and energy.

Advanced digital sensors will allow accurate monitoring of soil and air temperature and humidity, water consumption. The rain sensor will only stop irrigation when it starts to rain.

With the GRAAS APP, you can control the entire irrigation process from anywhere in the world. Simply download the GRAAS smart application to your phone and enjoy full access to irrigation settings, schedules, and real-time data on soil moisture, temperature, irrigation status, water usage, and many other features.

In the GRAAS app, you can set desired soil moisture ranges, and the system will automatically water the lawn based on data from soil sensors to maintain your target moisture. You can also schedule automatic irrigation by specific days of the week and at your preferred times.

By connecting a rainfall sensor, the system automatically responds to precipitation and stops irrigation as soon as it starts raining. The sensor ensures that water is not wasted, helping you save resources while protecting plants from excessive watering.

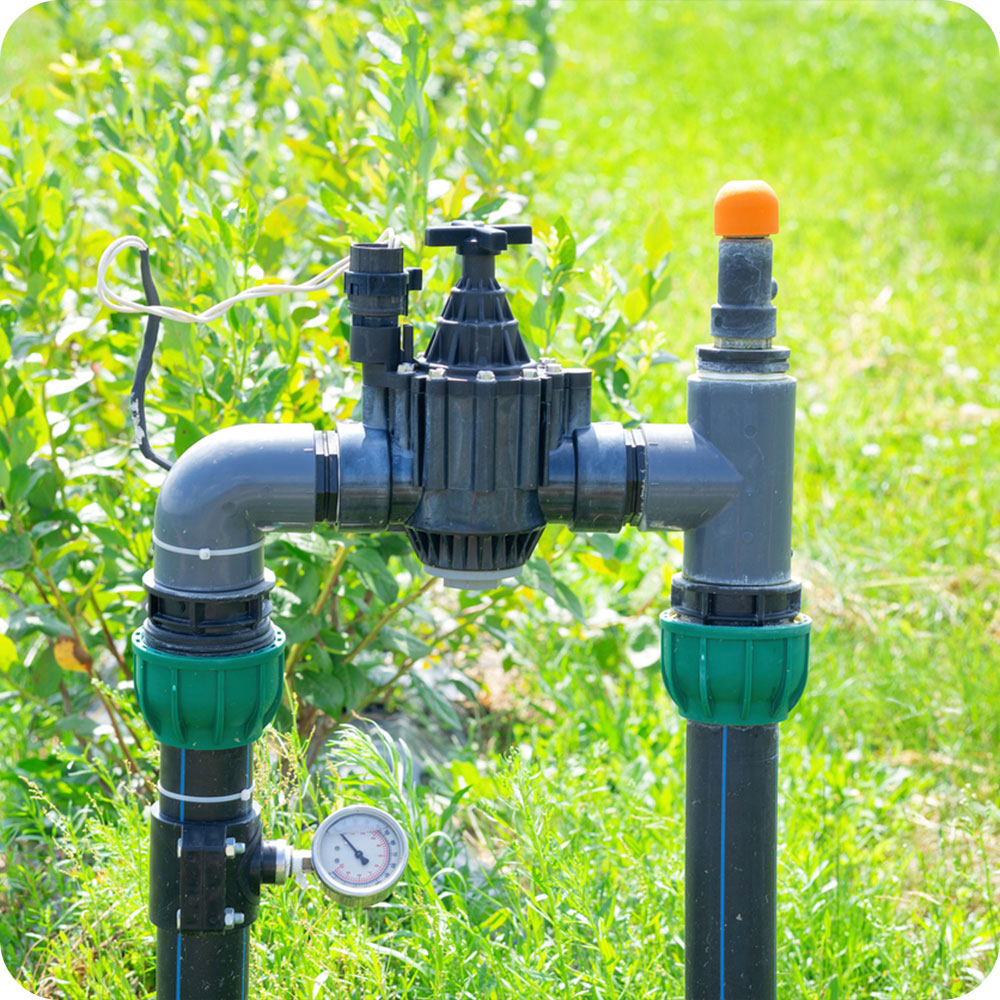

The GRAAS LawnCare irrigation controller is designed with existing irrigation systems in mind. It is compatible with all already installed systems that use 24V AC valves.

GRAAS LawnCare supports up to 7 separate irrigation zones, allowing each area to be maintained according to its specific needs. Whether it’s a lawn, flower beds, or parks – you can set individual parameters for each zone.

Up to 20 sensors can be connected to the system, measuring soil moisture, soil temperature, air humidity and temperature, water consumption, and rainfall. Together, they provide precise data to ensure even more accurate irrigation management.

Using the RS485 digital interface, you can connect up to 20 sensors to the irrigation controller.

GRAAS LawnCare supports the following sensors:

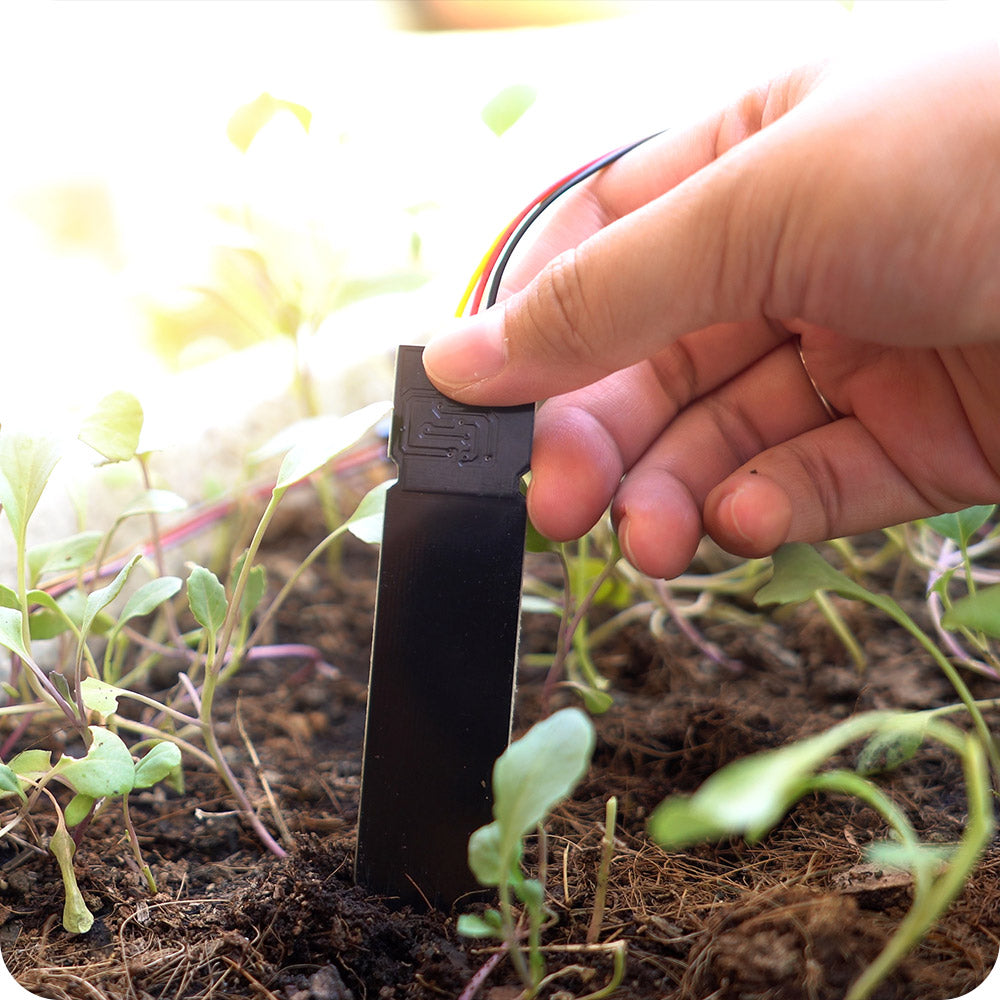

• Soil temperature and moisture
• Air humidity and temperature
• System pressure
• Rainfall

According to the zone, the flow sensor will allow you to know exactly how many liters of water were used during irrigation.

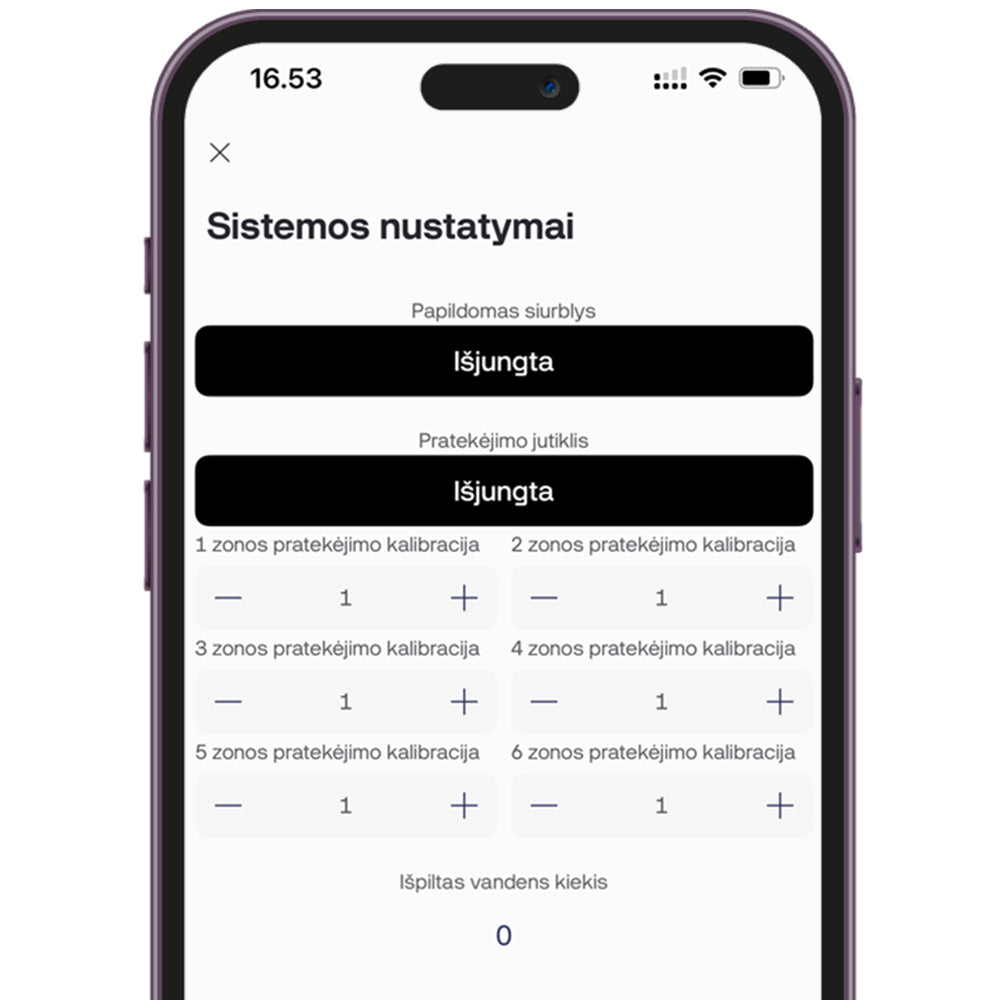

In the GRAAS APP, you can calibrate the flow sensor according to the system in use. Individual calibration ensures the highest possible accuracy.

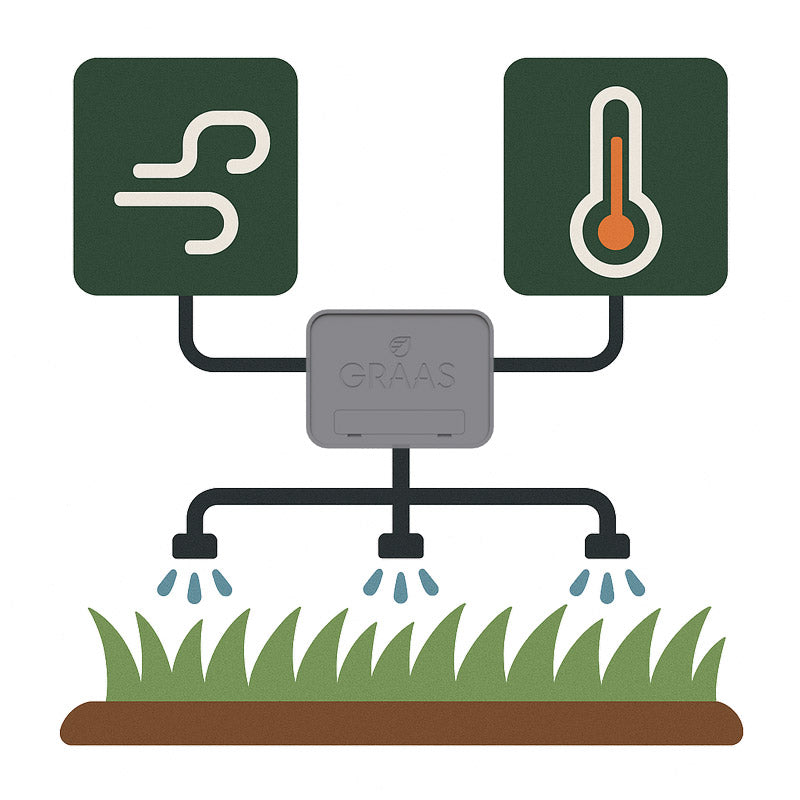

GRAAS LawnCare automatically increases or decreases irrigation according to outdoor temperature and wind speed.

Depending on the current conditions, the user can choose by how many percent irrigation should be reduced, increased, or turned off.

The smart lawn irrigation controller can use data from meteorological stations to automatically adjust the amount of water dispensed according to the user’s selected ranges.

To ensure accuracy in irrigation, we recommend using GRAAS sensors. This allows irrigation to be adjusted individually for each watered area.

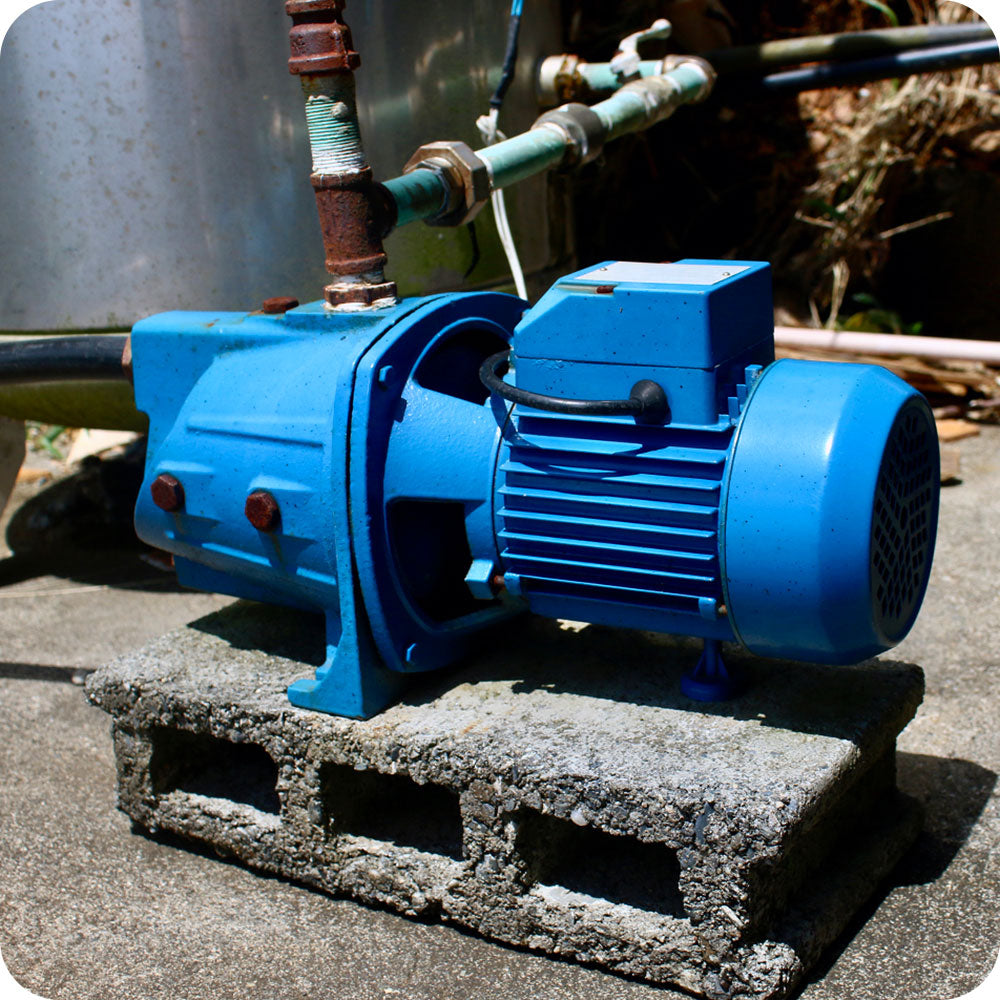

GRAAS LawnCare allows you to control an auxiliary pump, automatically turning it on and off only when irrigation is needed. This ensures efficient water supply, saves energy, and extends the pump’s service life.

The lawn irrigation controller stores data both in internal memory and on the server, so if the power goes out, the irrigation settings remain, and the system automatically resumes operation as soon as the supply is restored.

This is especially convenient if you are away – GRAAS LawnCare will ensure flawless lawn irrigation.

GRAAS LawnCare supports automatic remote software updates (FOTA). This means your device will always have the latest features, improvements, and security updates without any additional actions required from you.

Each GRAAS LawnCare controller comes with a cable cover that conceals all wires and protects them from external factors.

The wires are then routed through an electrical insulation pipe. All pipes with an inner diameter of 16mm are suitable.

Dydis	13.8x10.2x3.6cm
Maitinimas	24VAC, 1A, 50-60Hz. Maitinimo blokelis pridedamas.
Interneto prieiga	Wi-Fi, 2.4GHz
Laistymas	7 zonos
Jutiklių palaikymas	Palaiko iki 20 skirtingų jutiklių. Jutiklius galima pasirinkti pagal poreikį
Pratekėjimo jutiklis	1 vnt., parduodamas atskirai
Palaikomų jutiklių tipai	Pratekėjimo, oro drėgmės ir temperatūros, kritulių, dirvos drėgmės ir temperatūros jutikliai
Papildomo siurblio valdymas	Valdiklis gali įjungti ir išjungti vandens siurblį. (papildomas siurblys nepridedamas)
GRAAS LawnCare vejos laistymo sistemos komplektą sudaro	• GRAAS LawnCare automatinė vejos laistymo sistema • Maitinimo blokelis • Laidų apsauga

Dažniausiai užduodami klausimai

Ar galima naudoti mažiau nei 7 zonas?

Taip, naudoti galima, kad ir vieną zoną.

Kur kabinamas vejos laistymo valdiklis?

GRAAS LawnCare valdiklis yra kabinamas viduje, sausoje vietoje.

Išvykstu atostogoms. Ar reikalinga sistemos priežiūra?

Ne, po instaliacijos sistema nereikalauja papildomos priežiūros. Sistemą galite valdyti telefonu iš bet kurios pasaulio vietos.

Ar reikia valdiklį nustatyti iš naujo jį perjungus ar dingus elektrai?

Ne. Visi laistymo nustatymai ir duomenys yra saugomi serveryje, tad dingus elektrai ar perjungus laistymo valdiklį nustatytumų iš naujo nustatyti nereikia.

Ar galima GRAAS LawnCare pritaikyti prie jau instaliuotos laistymo sistemos?

Taip, GRAAS LawnCare tinka visoms laistymo sistemoms kuriuose yra naudojami 24VAC vožtuvai
